Charlotte VA Health Care Center

OWNER

Department of Veteran’s Affairs

ADDITIONAL INFORMATION

Construction Cost
$100 million

Completion Date
January 2016

Project Size
325,000 SF

Charlotte VA Health Care Center

Charlotte
North Carolina

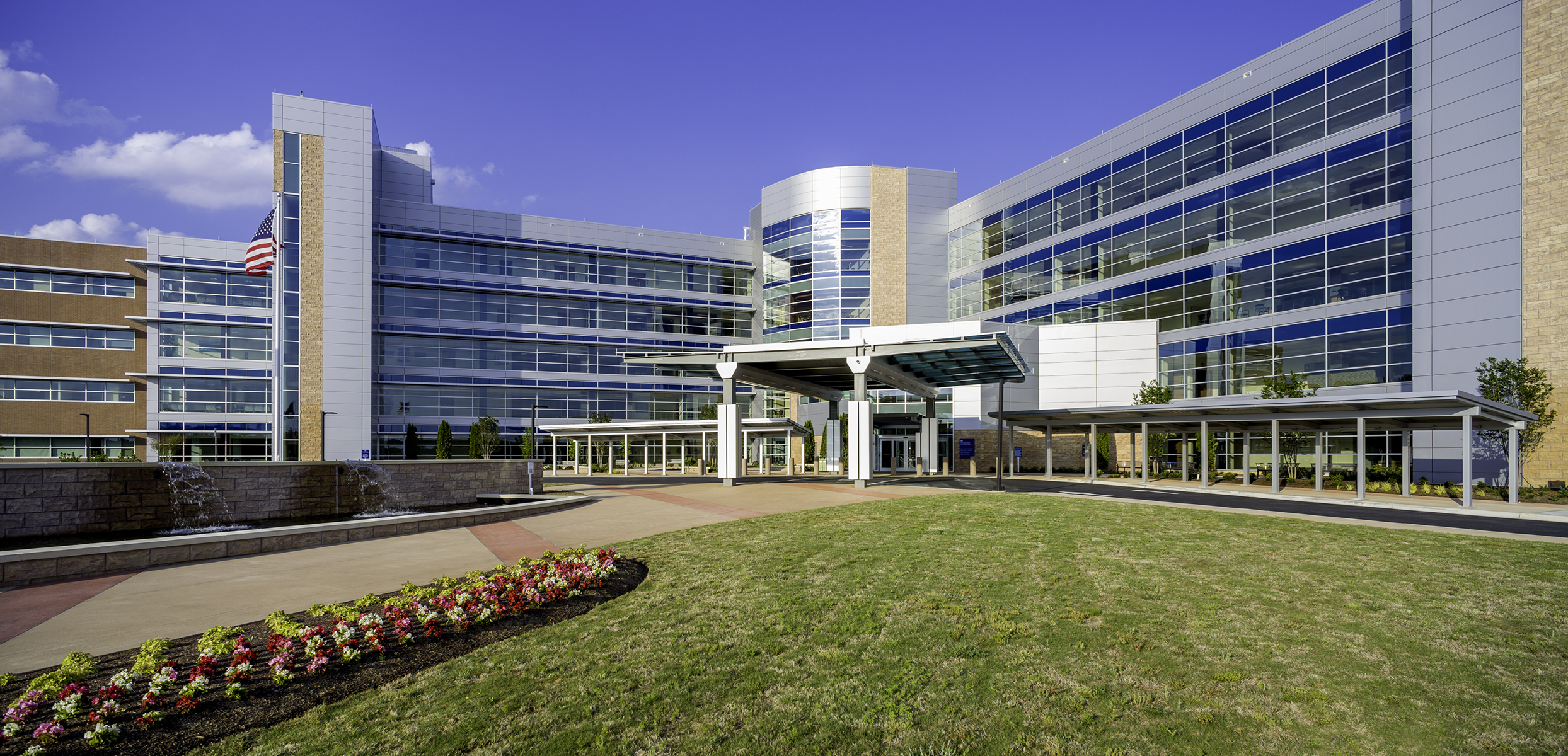

The Charlotte Health Care Center is one of the largest in the country and is the largest design-build-leaseback project in the United State for Veterans Affairs. This six-story outpatient health care facility, is located on a 35-acre site in Charlotte, North Carolina, and will provide more than 20 different medical services to Veterans Administration patients.

At the project kick-off, we participated in a pull planning meeting and identified the leanest way to deliver the structural design. The result was an early foundation package, early steel mill order package, and two early steel detailing packages. Although this was outside the normal VA design/review/procurement process, we negotiated the early packages to expedite the construction schedule and provide information to the contractor when needed. The foundation and steel mill order packages for this 325,000 SF facility were issued less than 4 months after receiving notice to proceed.

Walter P Moore’s secure design group provided design and detailing of the force protection system for this federal facility according to the specified guidelines. Floor reinforcement and roof deck connections were designed to provide protection against progressive collapse anywhere in the building. Perimeter cladding was supported only from the perimeter beams, and cladding connection points were designed to absorb blast energy without damaging the primary structural frame. We also worked with the cladding suppliers to provide forces and detailing requirements for all the exterior cladding. The insulated precast panels were extensively modeled to optimize the thickness, connection type and spacing, panel proportions and jointing, and internal reinforcement. Site security was also designed with standoff distances integrated with a pleasing site and landscape plan for this beautiful facility.
