San Antonio Military Medical Center Consolidated Tower

World class health sciences center

Project Facts

Location San Antonio, Texas
Owner US Department of Defense
Size 765,000 SF
Status Completed 2013
Certifications LEED Silver

Overview

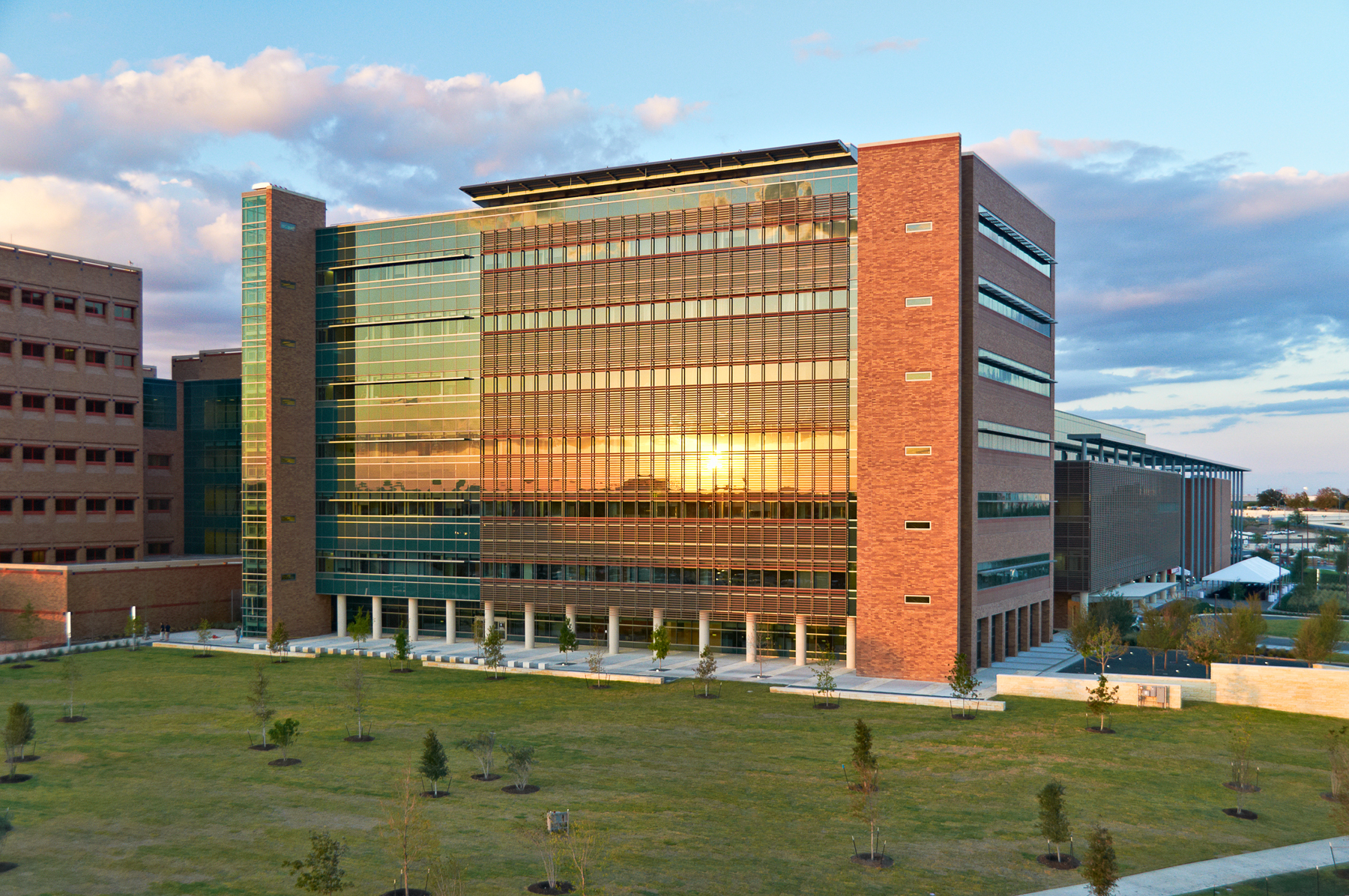

The award-winning Military Medical Center tower consolidation project transformed the facility into a sustainable space that welcomes natural light and scenic views through an advanced solar shading window system. The exterior design of intricate brickwork drew inspiration from the techniques employed in the hospital’s burn treatment procedures.

SAMMC Ext 005 CR

SAMMC Ext 001

SAMMC Ext 015 CR

WPM021 N7 large

SAMMC Ext 028

SAMMC Int 021 CR

WPM021 N12 large

1 / 1

About the project

The consolidated tower at San Antonio Military Medical Center (SAMMC) united the inpatient facilities for all Armed Forces medical care in San Antonio into one campus supporting the Base Realignment and Closure (BRAC) Act of 2005. The project included the expansion of the existing emergency department, operating rooms, a burn rehabilitation unit, intensive care, and inpatient nursing unit functions.

A steel composite floor framing system was used, with full interstitial framing for servicing critical facility infrastructure. To satisfy progressive collapse requirements, a perimeter moment frame system was developed by Walter P Moore and Side-Plate Systems, Inc. Determined through the analysis of progressive collapse requirements for the facility, the design allowed any lower-level single column to be removed without significant detriment to the entire building. Also, the building was designed with a concrete shearwall around the central elevator core at the tower portion to provide additional rigidity and torsional stability.

The team utilized the Navisworks platform for design review and collision detection between building systems. Evidence-based design principles were applied to enhance patient care. The project achieved LEED Silver certification.

WPM021 N4 large

Awards

2013 AIA Healthcare Design Award Recipient / Category B: Built, More than $25 Million

2012 Texas Society of Architects Design Award

2012 Engineering News Record Best Healthcare Project
